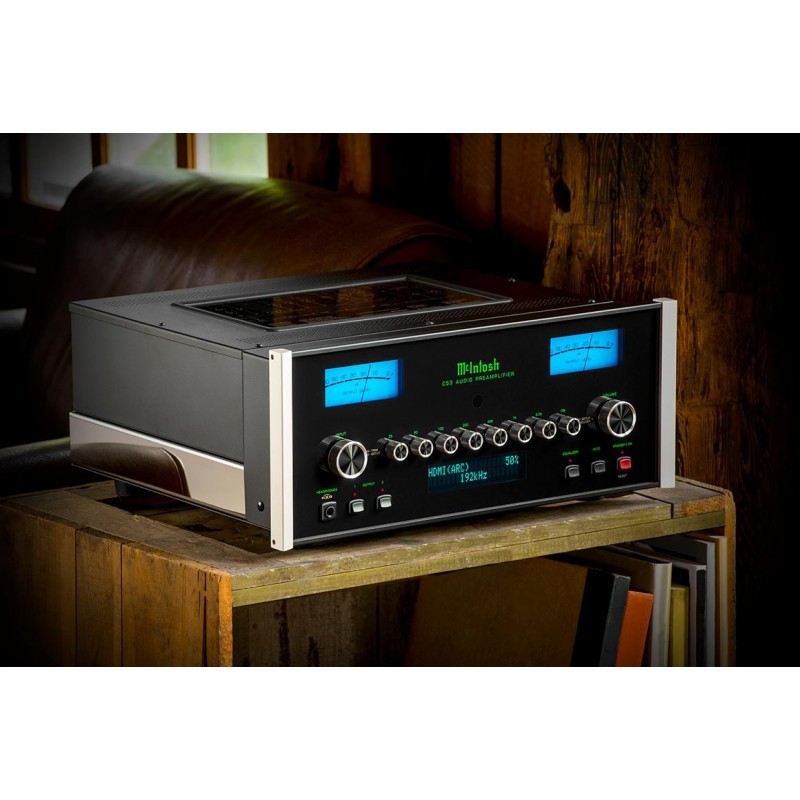

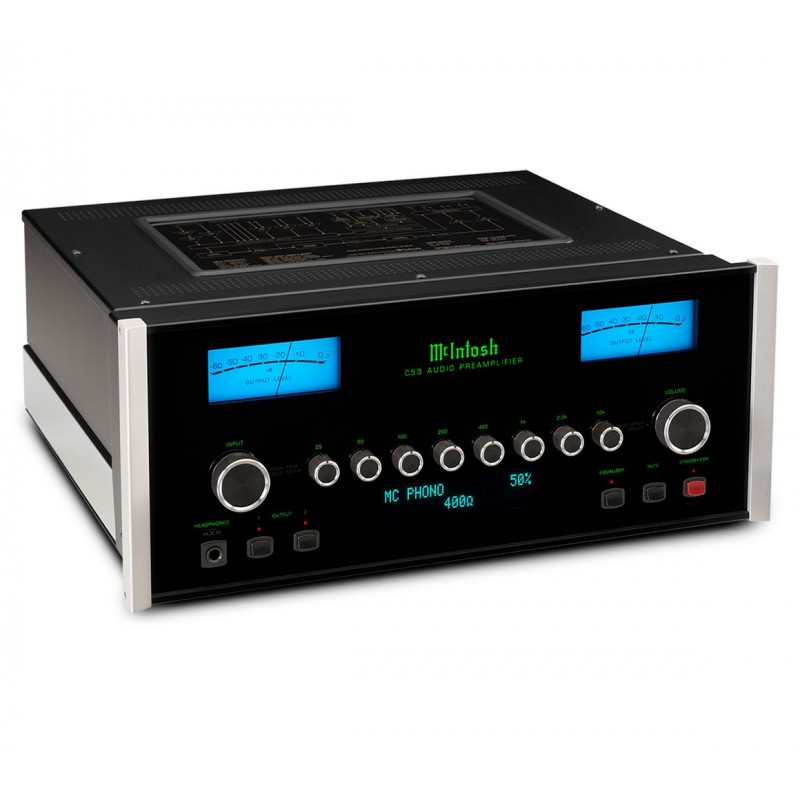

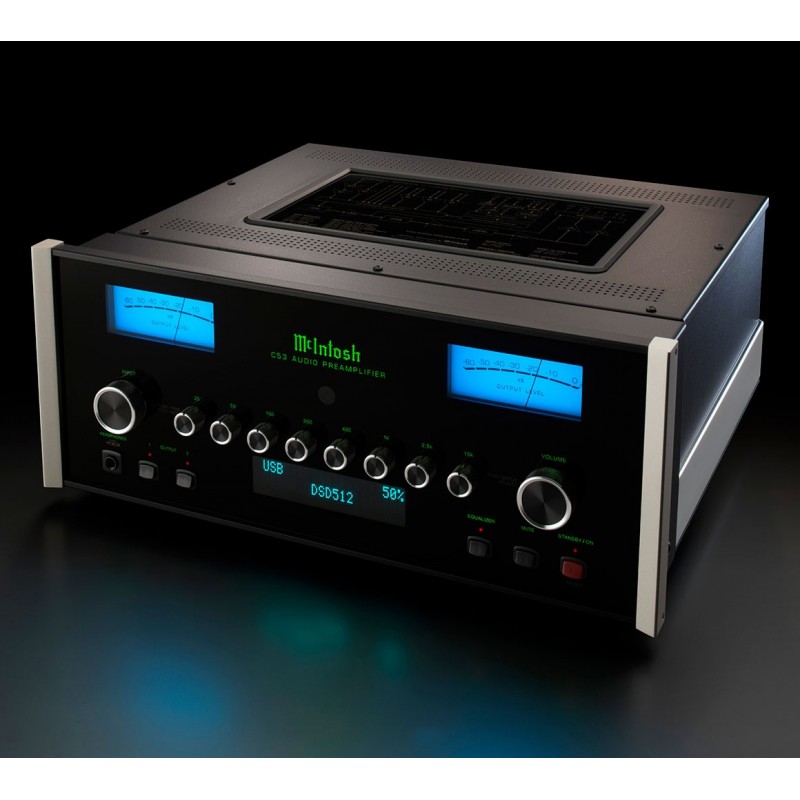

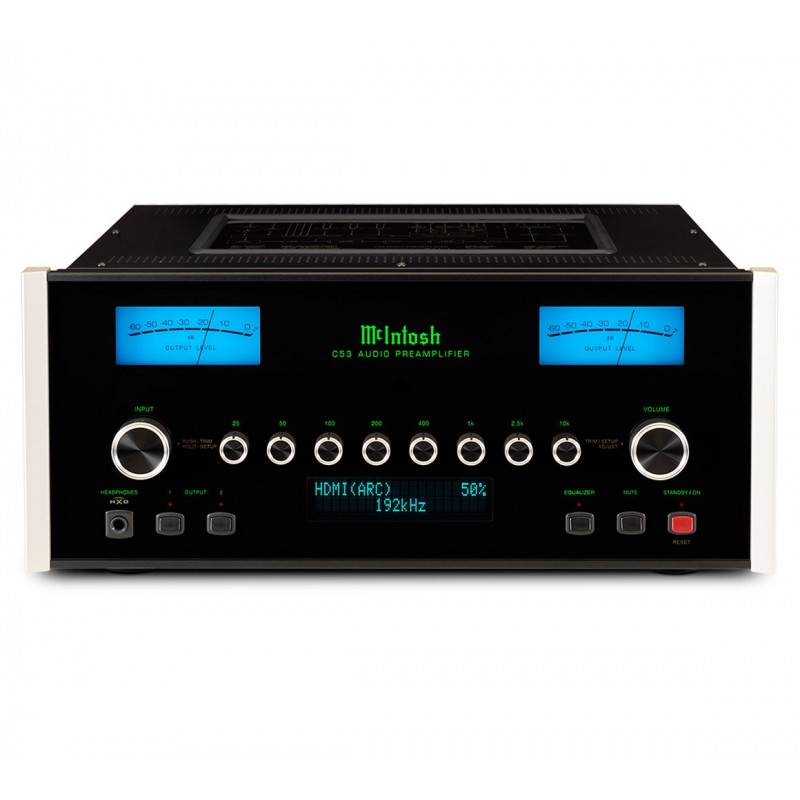

McIntosh C53 stereo pradinis stiprintuvas

• 16 inputs (9 analog + 7 digital)

• 8 band analog equalizer

• Supports up to DSD512 files

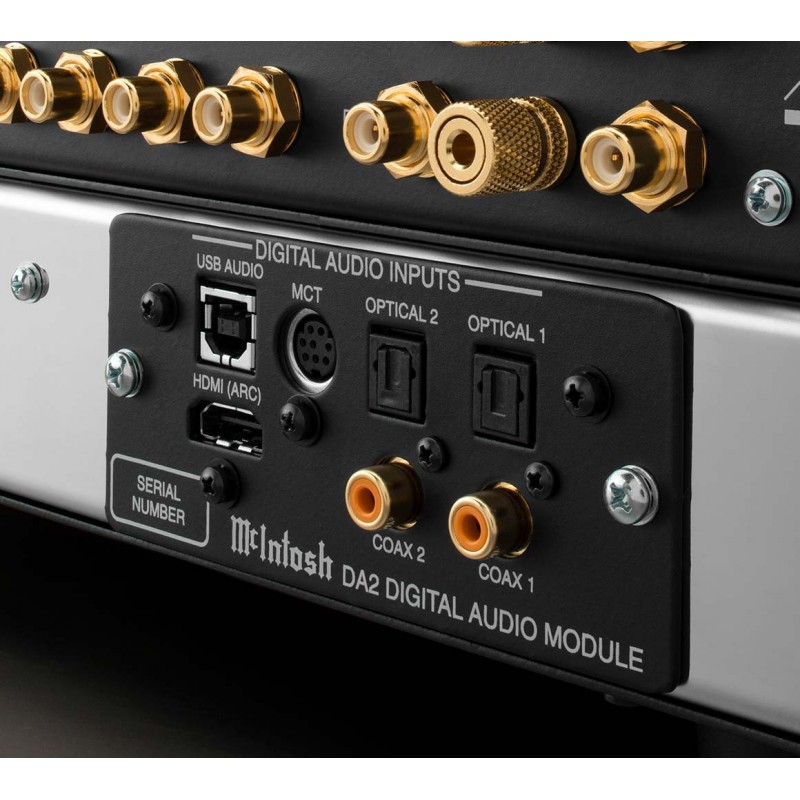

• Comes with DA2 Digital Audio Module installed

ELECTRONIC SPECIFICATIONS

• Number of Channels   2
• Total Harmonic Distortion  0.005%
• Frequency Response
• +0, -0.5dB from 20Hz to 20kHz
• +0, -3dB from 15Hz to 100kHz
• Maximum Volts Out (Balanced / Unbalanced)  16V RMS / 8V RMS
• Sensitivity High Level (Balanced / Unbalanced)    900mV / 450mV
• Sensitivity Phono (Moving Coil)   0.45mV
• Sensitivity Phono (Moving Magnet)   4.5mV
• Signal To Noise Ratio (High Level)  100dB
• Signal To Noise Ratio (Moving Coil)  80dB
• Signal To Noise Ratio (Moving Magnet)   82dB
• Voltage Gain (High Level)  15dB
• Voltage Gain (Moving Coil)  60dB
• Voltage Gain (Moving Magnet)  40dB
• Input Impedance (Balanced / Unbalanced)   44K ohm, 22K ohm

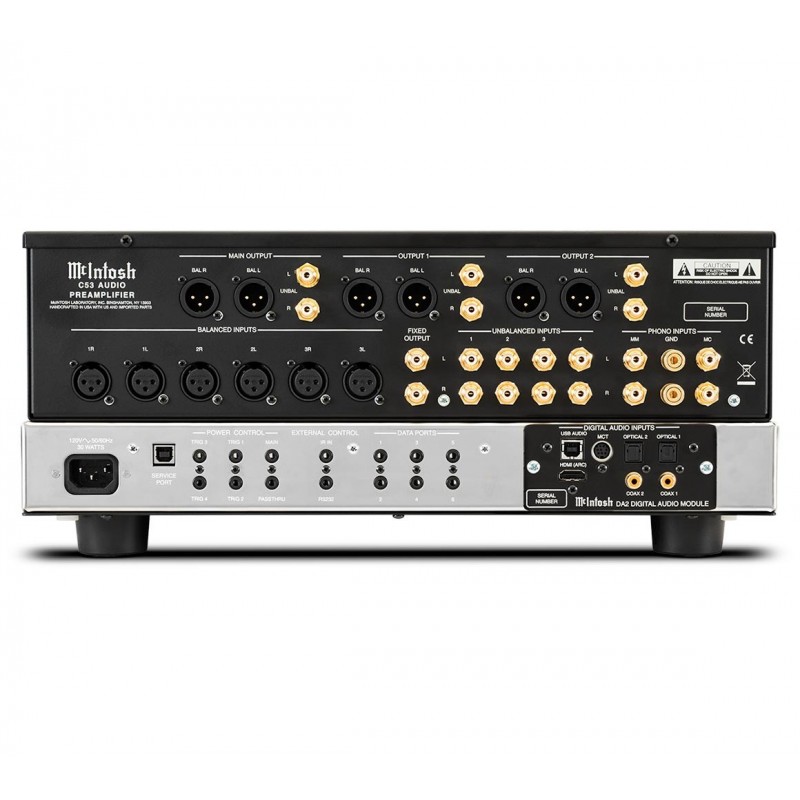

CONNECTIVITY

• Balanced Input  3
• Unbalanced Input  4
• Phono Input Moving Coil   1 (adjustable)
• Phono Input Moving Magnet  1 (adjustable)
• Upgradeable Digital Audio Module   Yes: DA2
• Digital Coaxial Input  2
• Digital Optical Input    2
• Digital MCT (DIN) Input   1
• Digital USB Input   1
• HDMI (ARC) Input   1
• Digital AES/EBU Input   0
• Balanced Fixed Output  0
• Balanced Variable Output   3
• Unbalanced Fixed Output    1
• Unbalanced Variable Output   3
• Headphone Output  1/4" High Drive with Headphone Crossfeed Director (HXD®)
• Input Level Match    Yes, +/- 6dB
• Home Theater PassThru    Yes
• Unbalanced Analog Connector Type
• Premium gold-plated solid brass
• Service Port  1

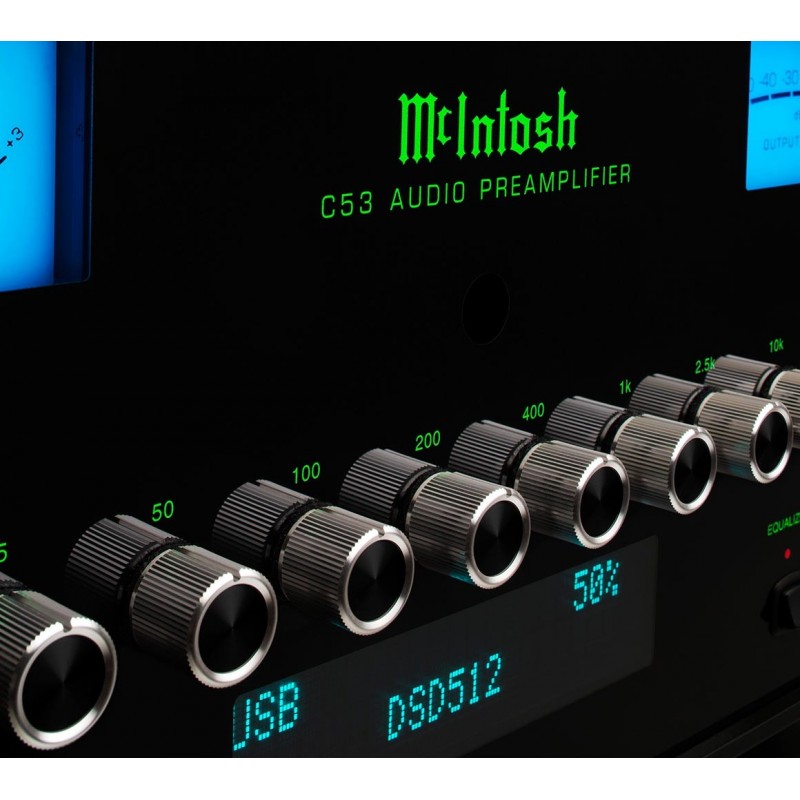

• Tone Controls
• 8 band (each band adjustable ± 12dB )
• Tone Bypass and Input Assign   Yes
• RS232 Control Input  Yes
• Power Control Output   1 Main, 4 Trigger
• Rear Panel Data Port  6
• Rear Panel IR Sensor Input  Yes

CONTROL

GENERAL SPECIFICATIONS

• Multi-Chassis or Single  Single, two layer
• Output Meters    Yes
• Vacuum Tube or Solid State  Solid State
• Power Consumption (On)   30 Watts

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)  44.45cm x  19.37cm x  45.72cm
• Weight   12.5 kg
• Shipping Weight   19.7 kg
