McIntosh MPC1500 maitinimo filtras komutatorius

ELECTRONIC SPECIFICATIONS

• Load Regulation   ± 2.5 %
• Output Voltage With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:  230 Volts AC Nominal
• Power Requirement  With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles: 230 Volts ~50/60Hz  6.0 Amps (max) 1380 Watts (max)

GENERAL SPECIFICATIONS

• AC Power Line Protection
• Specially wound toroidal isolation transformer
• Surge Suppression Type
• Quick-acting surge suppression module
• Number of Receptacles
• With Type B (a.k.a. NEMA 5-15R) receptacles:
• 6 medical grade duplex receptacles

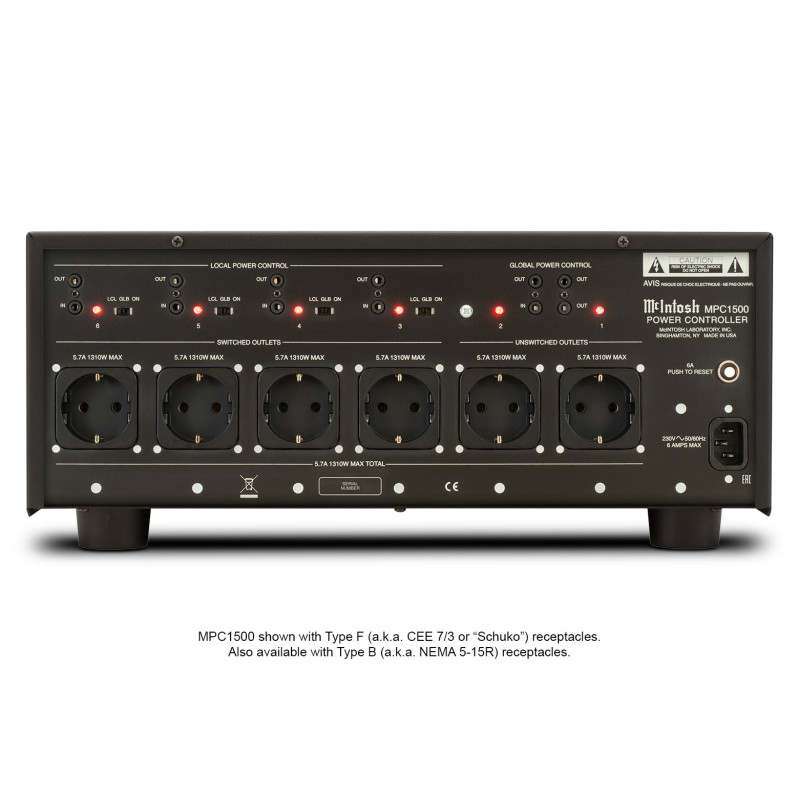

• With Type F (a.k.a. CEE 7/3 or “Schuko”) receptacles:

• 6 high quality single receptacles
• Number of Always ON Receptacles  2
• Number of Programmable Receptacles  4

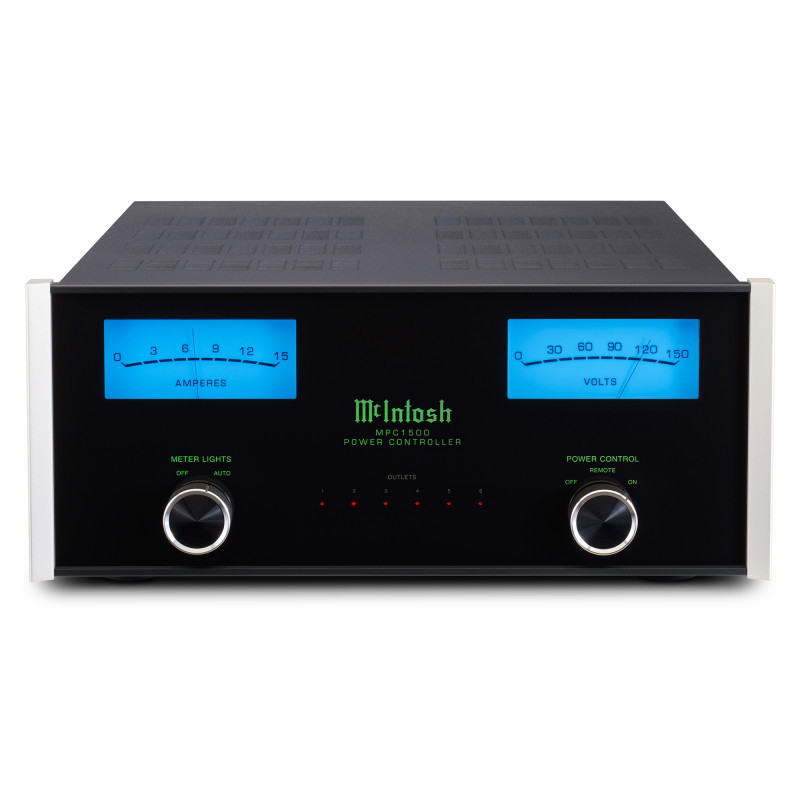

• Meters  1 for Amps, 1 for Volts
• Meter Light Switch  Yes

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D) 44.45cm x  19.37cm (including feet) x 55.88cm (including front panel, knobs and cables)
• Unit Weight   39.46 kg
• Shipping Weight  47.63 kg
