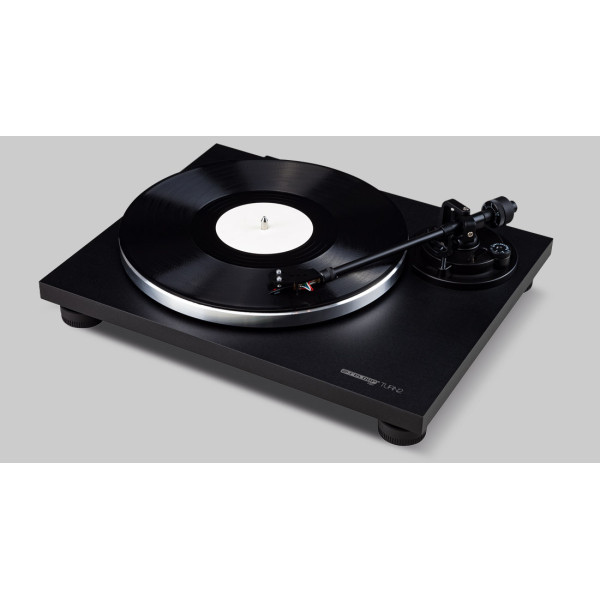

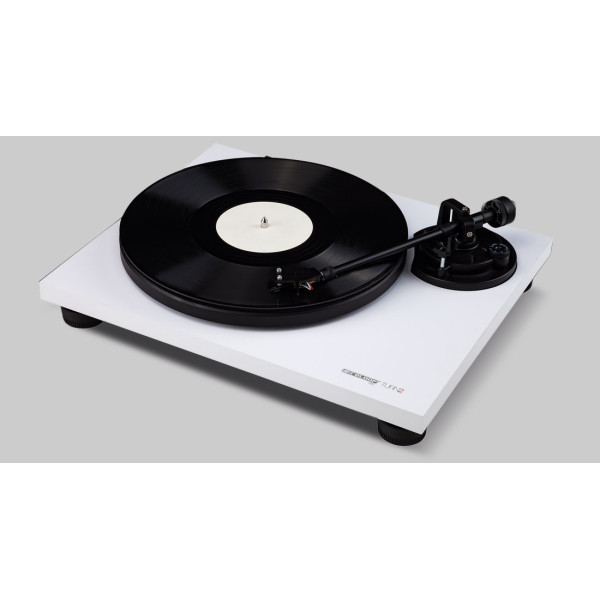

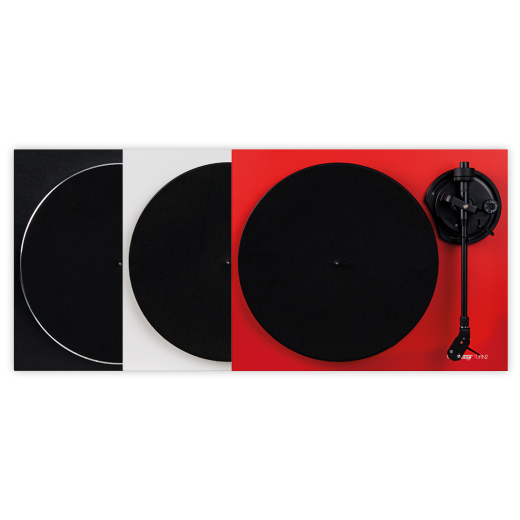

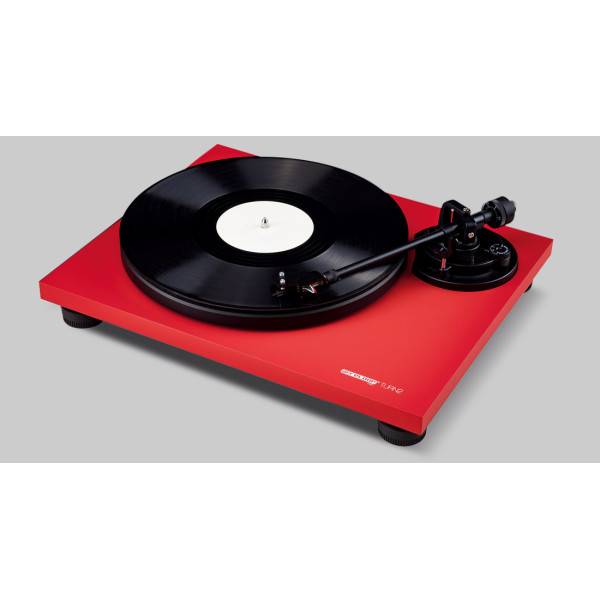

Patefonas Reloop TURN2

---

• Belt-driven Hi-Fi turntable
• Factory fitted with Ortofon OM10 cartridge
• New straight tonearm design with optimal tracking performance
• Manual arm lift
• Low vibration DC motor
• Integrated motor control with Speed-Switch for conveniently selecting two different speeds 33 / 45 rpm
• External DC power supply
• Die-cast Aluminum Platter with chrome edging
• Anti-Skating Wheel-System
• Gold-plated, corrosion resistant connections (all cables detachable)
• Slim-line wooden Plinth with mat black finish
• Convenient power switch at the side bottom
• Included Accessories: Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable, DC power supply with international plugs, Felt Mat, Instruction Manual, Ortofon OM10 cartridge, headshell

Turntable Section:

• Type: Belt-Driven Analogue Turntable System
• Drive: Belt drive
• Motor: DC Motor
• Turntable Speeds: 2 speeds (33 1/3, 45)
• Wow and flutter: 0.2% WRMS
• S/N Ratio: >65 dB (a-weight)

Tonearm Section:

• Type: Static Balanced Straight Tonearm
• Effective Length: 224mm
• Overhang: 19mm
• Tracking Error Angle: 25°
• Tracking Force: 1.5g
• Applicable Cartridge Weight: 4~6g
• Anti-Skating Range: 0 – 3g

Turntable Platter:

• Material: aluminium die-cast
• Diameter: 300mm
• Weight: 550g

General:

• Power supply: DC 12V, 500mA
• Power Consumption: 6W
• Dimensions: 420 (W) x 340 (D) x 121 (H) mm (incl. Dust cover)
• Weight: Approx. 4.6kg

Terminals:

• 1x PHONO Out (gold-plated)
• 1x GND Earth Terminal

Included Accessories:

• Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable, DC power supply with international plugs, Felt Mat, Instruction Manual, Ortofon OM10 cartridge, headshell
